SUPRA CombiCon Kit RED/BLACK 2+2PAIRS

Description

Supra CombiCon Kit M6

• 24K gold plated loudspeaker connector for cables up to 6 mm2
• The banana pin fits also BFA terminals
• The Fork inner width allows for the vast majority of speaker terminals
• The cable can be attached straight or at a 90° angle

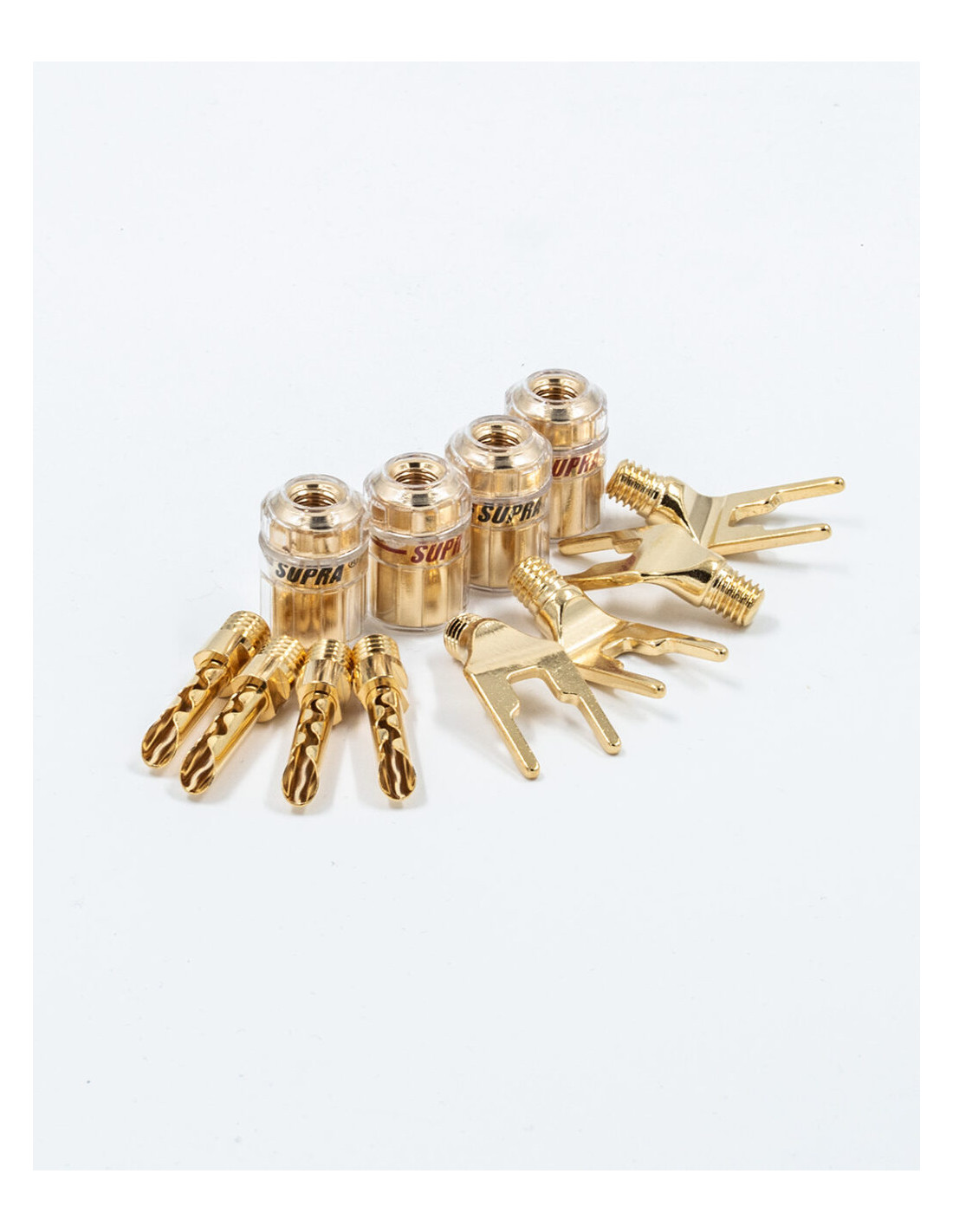

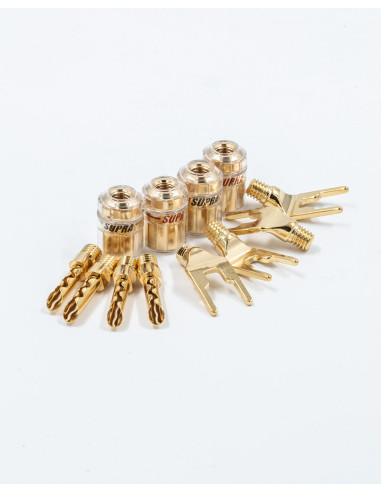

Content

• 2 pairs of Connector Body M6
• 4 pcs of Spade part M6
• 4 pcs of Banana/BFA pin M6
• Content sufficient for one pair of speaker cables in full range mode

Supra CombiCon Series – A versatile, robust series of contacts

The Supra CombiCon allows for changing contacts from BFA/banana to Fork in a blink of an eye. And back again for that matter, providing for exceptional freedom and flexibility for any future desires. Electrically, the Supra CombiCon matches any of our cables and the design specification was clear-cut, it must not be a bottleneck for our Supra Sword speaker cable. Rest assure, there are no any other contact, making a better job for Supra cables, even though competing contacts often are much more expensive.

This combination connector comprises two parts: a connector body with a M6 thread that attach to the cable in two ways; straight or 90°, and contact part with M6 thread that fits the connector body. The contact part may be either the Fork, the BFA/Banana pin or a combination of both depending on desired access angle to the speaker terminal.

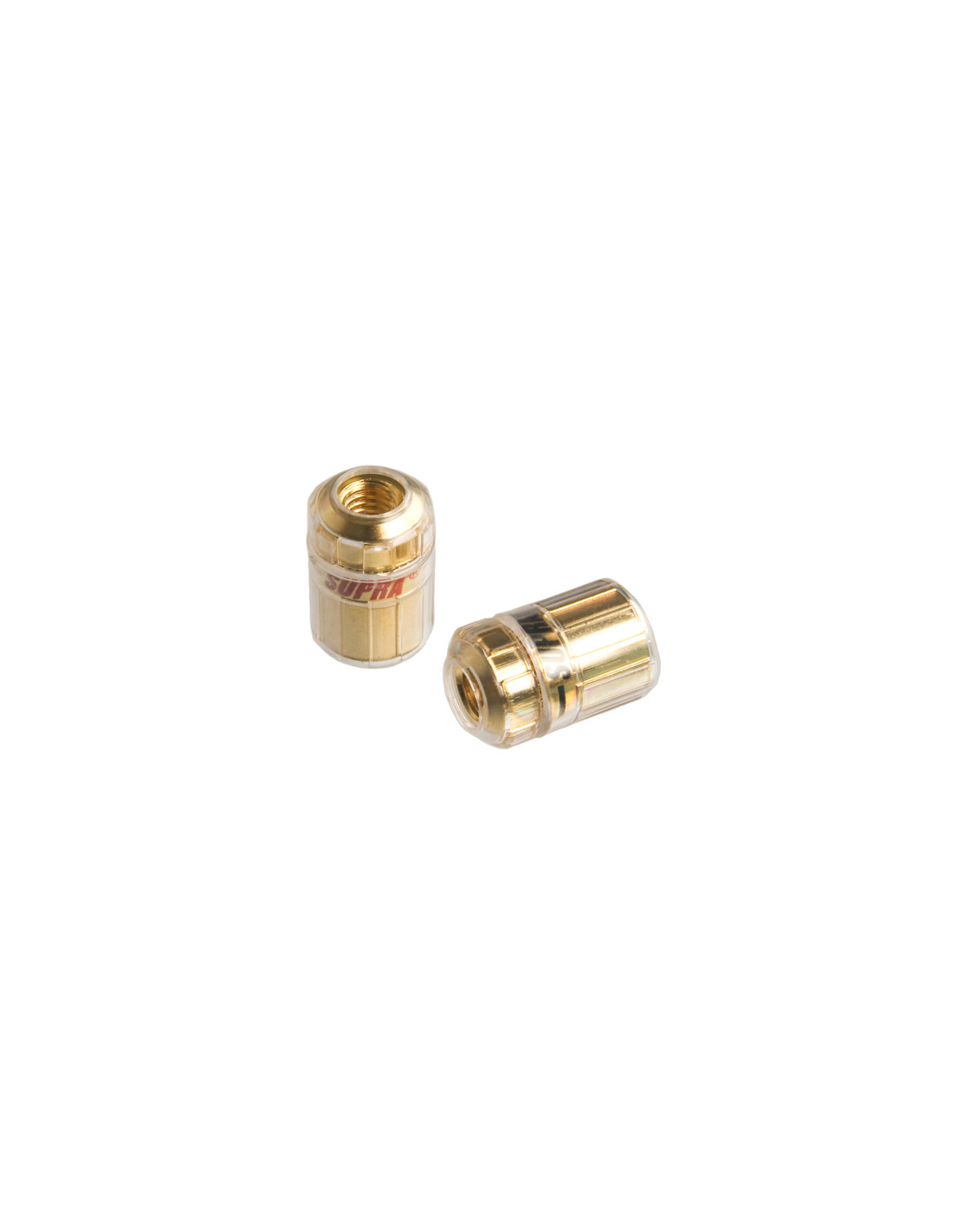

The Connector Body M6

The connector Body attach to the cable either straight or in 90° angle. Click the pictures above for better views. A speaker cable with fork connectors may also attach to the connector Body, often to achieve a different access angle of the connection to the speaker terminal. Printing in red and black, respectively, for polarity identification. The connector Body houses CombiCon BFA/banana or Fork in the M6 thread.

The Contact Part M6

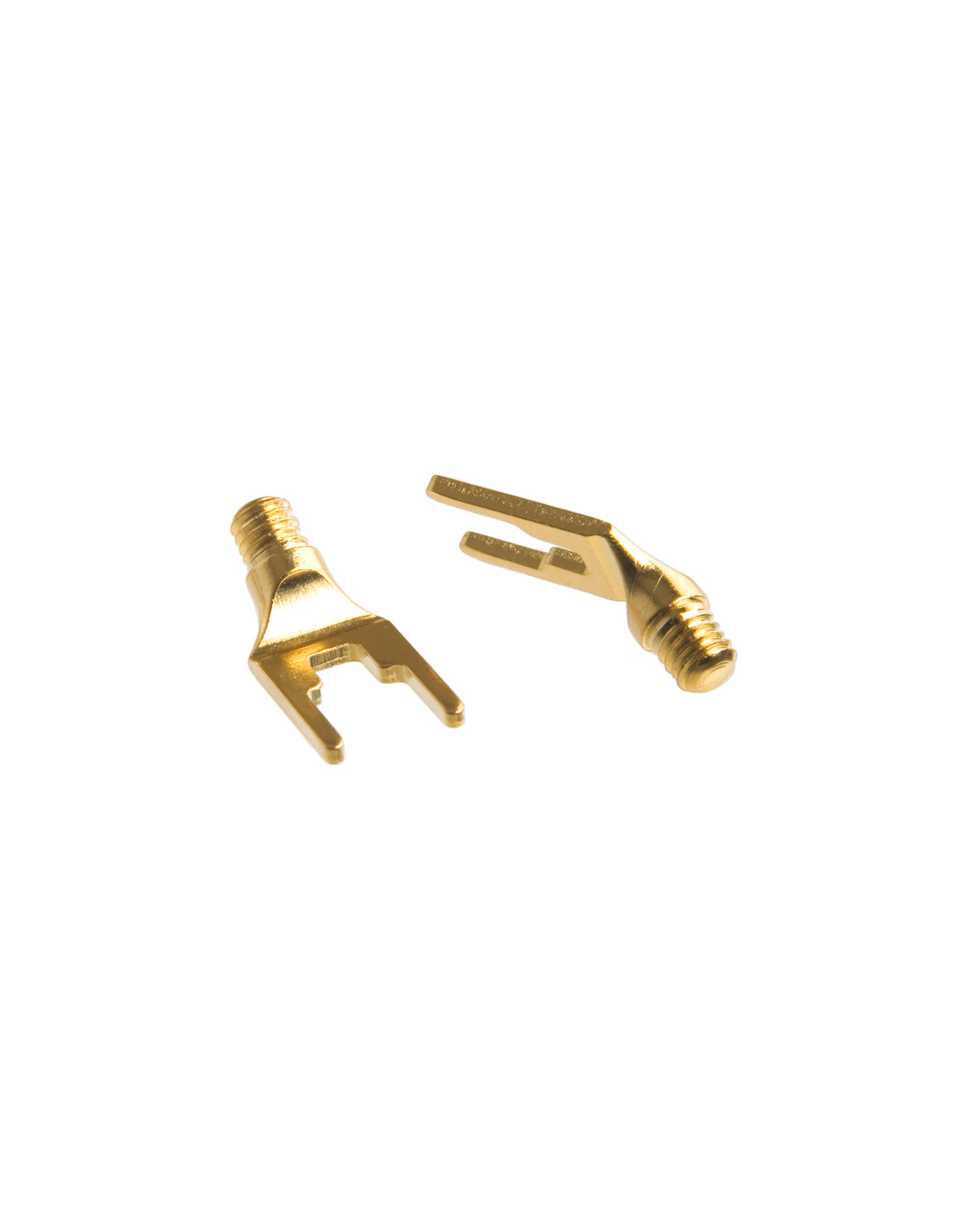

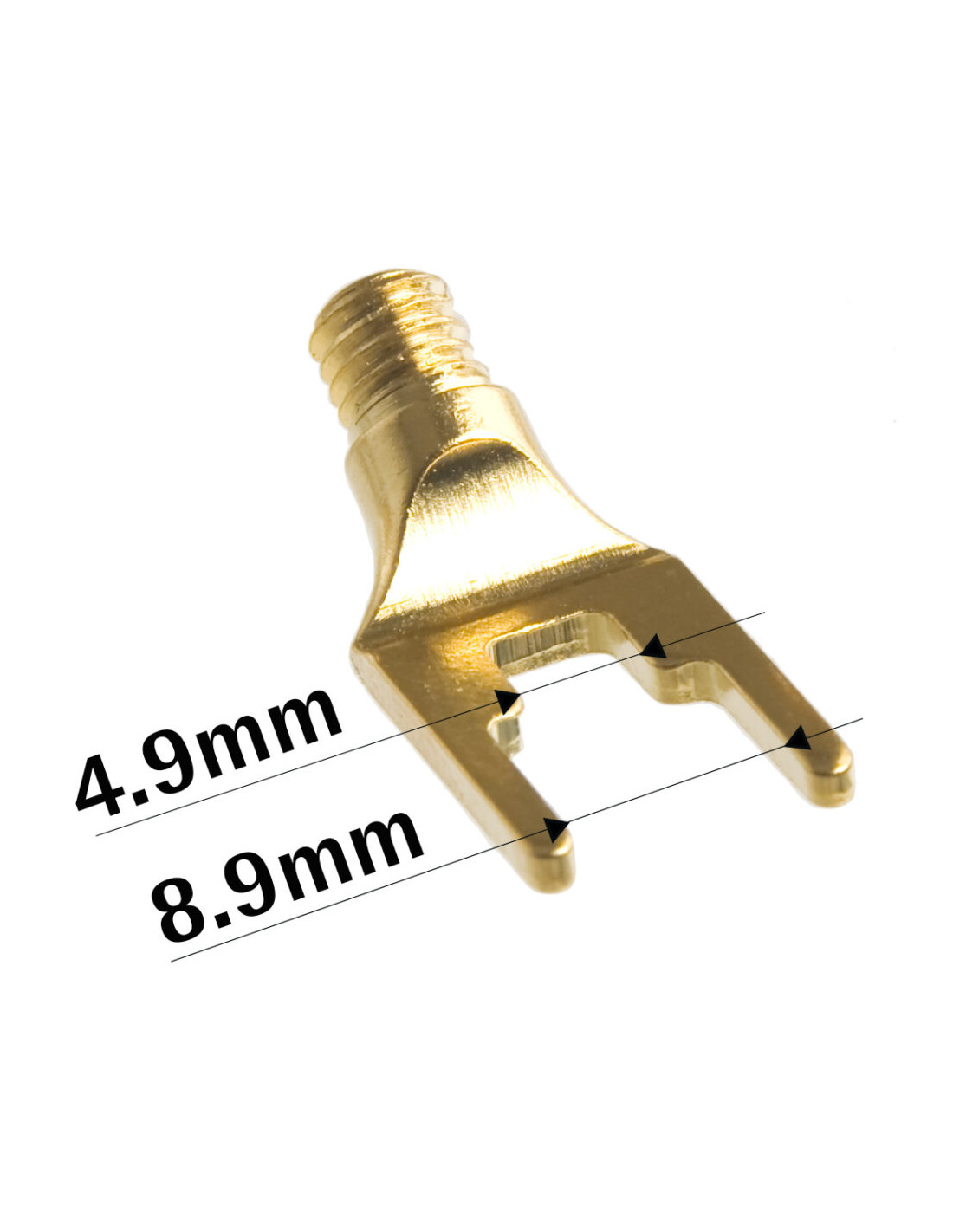

The BFA/Banana pin also fits BFA connectors. The Fork is angled for easier mounting in tight spaces and offers a two-step internal width to fit the vast majority of speaker terminals.

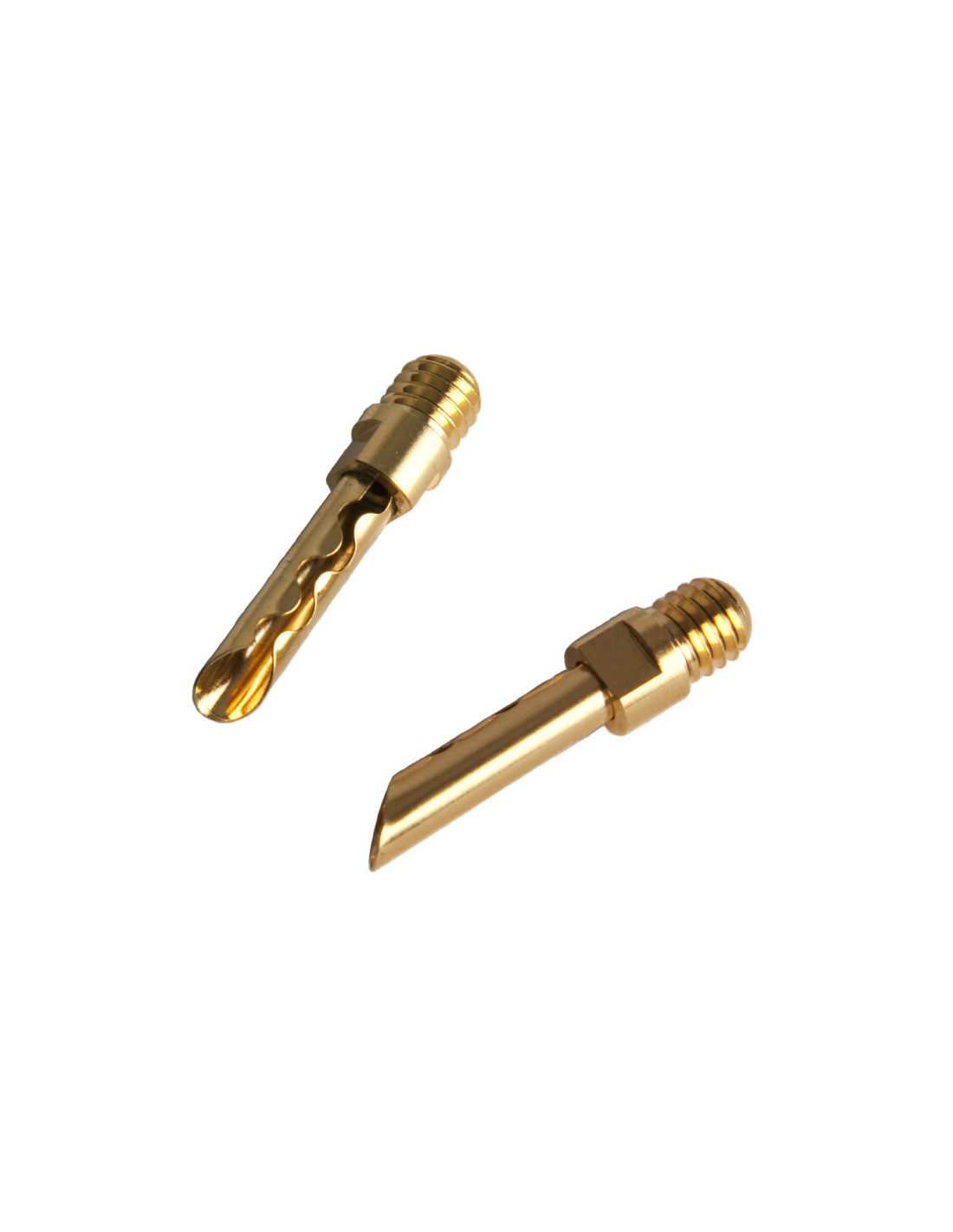

The BFA/Banana pin is reinforced and improved, now equipped with a key grip for a small spanner or a fixed 5 mm wrench and finally a larger M6 thread. The BFA/banana as well as the Fork fits into CombiCon Body M6 and CombiCon Crimp Body M6.
