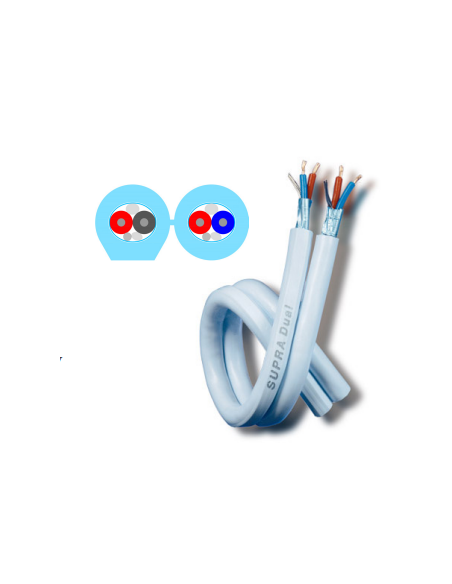

DUAL AUDIO 2PRS LINE

Dual Audio - a multi-test-winner

Analogue Interconnect cable, Hi-Fi & line - stereo Our most cost effective, yet rewarded analogue interconnect featuring Supra’s signature design principles. An entry level two channel (stereo) interconnect cable for balanced or single-end applications, still providing the Supra signature properties of lower capacitance, efficient shielding, timing and transient response. In spite of its highly favourable price tag, it has earned rewards for the good musical properties and is the given choice for replacing the attached interconnects following entry level hi-fi equipment. It will result in a significant sound improvement clearly audible by anyone. Application examples are interconnection of analogue devices, either by RCA or balanced XLR connectors, e.g. between CD, pre-amp and power amplifier. Suitable connectors are Supra RCA-6, RCA-CS and Swift XLR. Reward in ”What HI-FI”! a good entry-level cable, Dual with Supra RCA-6 plugs.

CONSTRUCTION

• Cunductors (x4): Tin plated Cu-wire OFC 5N 19x0.127 mm
• Cross section Area: 2x2x0,24mm2 / AWG 23
• Insulation: Pair 1: PE red & blue / Pair 2: PE red & black. Twisted conductors
• Screen: Alu/PET foil
• Screen coverage: 100%
• Screen connection: 2 x tin plated drain-wires 19x0.127mm
• Pairs 2 twisted pairs, PE insulated conductors in 3 colours for easy identification
• Jacket: PVC GA78, round
• Jacket wall thickness: 2 mm
• Diameter: 2x 5.5mm
• Colour: Iceblue (other colours upon order)
• Marking: SUPRA DUAL > Made in Sweden > Meter mark
• Weight: 70 kg/km
• Packing: Bobbin 100m (other lengths upon order)
• Suitable plugs: Supra RCA-6, RCA-6SC & Swift XLR

ELECTRICAL SPECIFCATION

• Resistance: 72 ohm/km
• Capacitance: 52 pF/m
• Characteristic impedance: 90 Ohm
• Velocity factor: 0,66x C (speed of light)
