SUBLINK AUDIO 1PR LINE

Sublink Audio

Analogue Interconnect cable, Hi-Hi, Line & Subwoofer - mono

Supra SubLink is suitable as a single channel interconnect such as AV-receiver LFE out to sub-woofer LFE input, or as a pair of stereo interconnects. Low capacitance and efficient shielding provides for long cable routing such as e.g. sub-woofers. The cable is possible to connect as single-end or balanced with any of our suitable connectors as follows; PPX, RCA-6 or XLR. An excellent entry level cabel for the consious hi-fi listener how will not satisfy with the sub-standard interconnects usually enclosed with entry level hifi eguipment. We believe it will be the starting point of exploring the positive impact of Supra’s interconnects, which will allow any hi-fi device to reach its full potential.

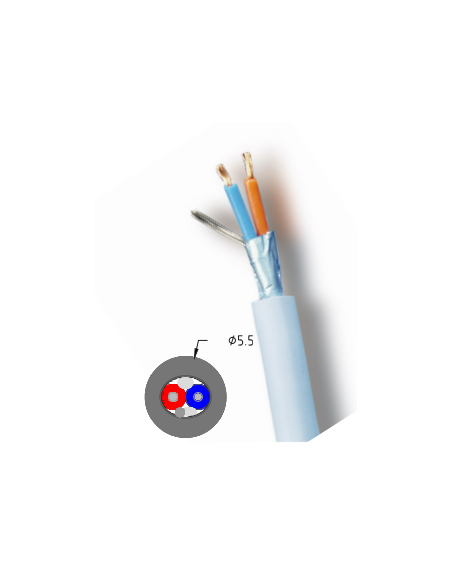

CONSTRUCTION

• Cunductors (x2): Tin plated Cu-wire OFC 5N 19x0.127 mm
• Cross section Area: 2x0,24mm2 / AWG 23
• Insulation: PE, Blue & Red. Twisted pair.
• Screen: Alu/Pet foil
• Screen coverage: 100%
• Screen connection: Tin plated OFC drain-wire 19x0.127mm
• Jacket: PVC GA78, round
• Jacket thickness. 2 mm
• Diameter. 5.5mm
• Colour: Iceblue & white (other colours upon order)
• Marking: SUPRA SUBLINK > Made in Sweden > Meter mark
• Weight. 48 kg/km
• Packing: Bobbin 100m (other lengths upon order)
• Suitable plugs: Supra RCA-6, RCA-6SC & Swift XLR

ELECTRICAL SPECIFCATION

• Resistance: 72 ohm/km
• Capacitance: 52 pF/m
• Characteristic impedance: 90 Ohm
• Velocity factor: 0,66x C (speed of light)
