Supra EFF-IRB

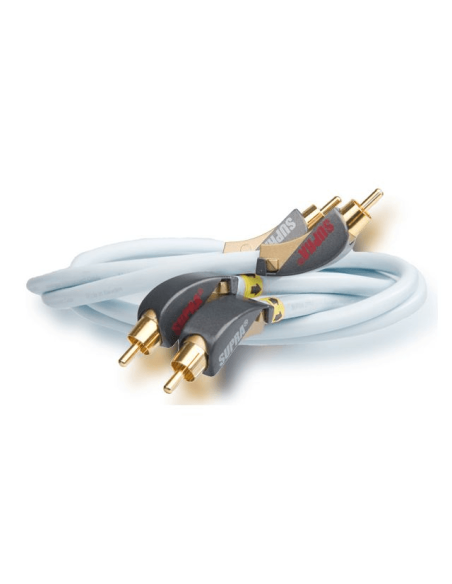

EFF-IRB 2RCA-2RCA Audio - High End Analogue Interconnect Cable with angled RCA Flawless signal transfer of even the most subtle music details is always the goal. There are electric properties that needs to be addressed prior to reaching the goal; capacitance, phase, skin-effect & shielding. The purity of conductors, dielectric choice, plating quality is generally sub-standard even though they might appear high-end.

The skin-effect is the physical event forcing higher frequency signals flow closer to the conductor surface. This means that low & high frequency impedance are not equal and therefor affects the signal level & phase. It has a profound dynamic & clearly audible influence because an audio signal is in principle nothing but an infinite number of frequencies at an infinite number of levels. In order to minimize the skin-effect, the EFF-I is designed according to our

Equalized Frequency Flow (EFF) technique. Around a plastic core, the strands are wound forming a conductor tube, in turn forcing all frequencies through the same cross section area well tuned for the entire audible range. The result is a maintained frequency respons as from the source without any level changes like treble roll-off or phase shift. Further the strands are silver plated to provide for ultra-high frequencies & are insulated using PE, providing the lowest

capacitance. Finally there must not enter any RFI destroying all efforts to maintain original signal integrity & our aluminized PET foil is a high bandwidth efficient shield keeping noise outside.

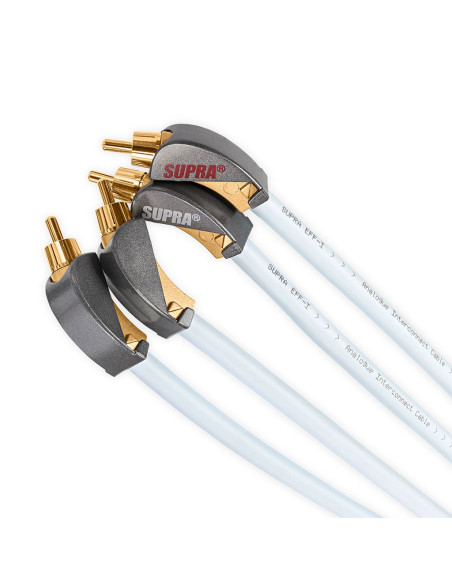

Equipped with our Supra PPR-B fully shielded connectors. The connector features angled connection access to the chassis female, hence reducing bend torque from the cable weight. Suitable for use in every single-end application

from entry to mid-end level, where dynamics, timing and faithful music reproduction is desired.

CONSTRUCTION

Cable: SUPRA EFF-I

Jacket: PVC GA78, round

Diameter: 7.8mm

Colour: Iceblue (other colours upon order)

Marking: SUPRA EFF > Made in Sweden > Meter mark

Screen connection: Semi-balanced, the screen is only connected at the source end

Connectors: SUPRA PPR-B

- Type: 2 RCA Male > 2 RCA male, red/white

- Material: Pins of 24K Gold plated OFC

- Colour: Anthracite grey

- Locking: Expanding outer ring to terminal & Quick lock cable cap.

Solder tin: Almit SR34 Super

Signal direction: Follow the arrows > Source > Receiver

Packing: Blister 25 x 21.5 x 4.8cm
