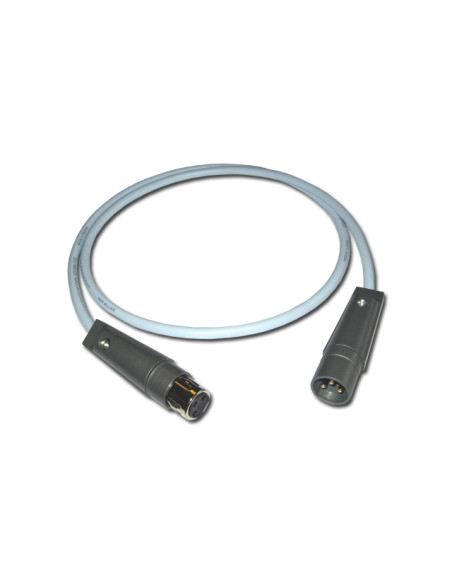

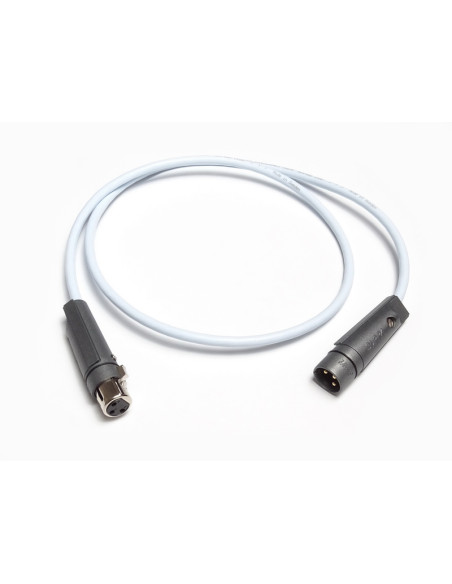

Supra DAC-XLR

DAC-XLR Digital

Digital AES/EBU 110 Ohm

DAC-XLR is a professional 110 Ohm interconnect cable for XLR interfaced digital audio signals according to the AES/EBU standard. The cable include our patented Supra Swift XLR connectors. Provides for balanced signal transmission a function where positive signal is inverted to form the negative on pin 3. By subtraction will any signal component present only in the signal path 2 or 3 be cancelled out. Any malignant

noise that succeeds in entering the cable, will not infect signal paths symmetrically and will therefore not survive the subtraction. A good cable with efficient shielding and correct impedance will together with the

balanced transmission standard preserve signal integrity also for cables lengths in studios and on-stage at a very high level. Also some high-end hifi brands utilize balanced digital and analogue transmissions. The second very important feature with balanced transmission is that the shield and earth lead level unequal earth

potentials between devices without compromising the signal.

Application example: AES/EBU; Professional digital audio signals, and high-end hifi equipment, e.g. between CD-drive and DAC.

CONSTRUCTION

Cable: SUPRA DAC

Mantel: PVC GA78, round, Diameter 6.1mm

Colour: Iceblue (other colours upon order)

Marking: SUPRA DAC > Made in Sweden > Meter mark

Screen connection: Balanced connection, the screen is connected in both ends.

Plugs: Supra Swift XLR, fully shielded & very robust construction.

- Type: 1 XLR 3F female black > 1 XLR 3M male black

- Pin material: 24K Gold plated OFC

- Colour: Anthracite grey

- Locking: Snap lock at device & screw clamp at the cable

Char. impedance: 110 Ohm AES/EBU

Solder tin: Almit SR34 Super

Signal direction: Follow the arrows printed on the cable > source > receiver

Packing: Blister 25 x 21.5 x 4.8cm

Special lengths are made upon order.
