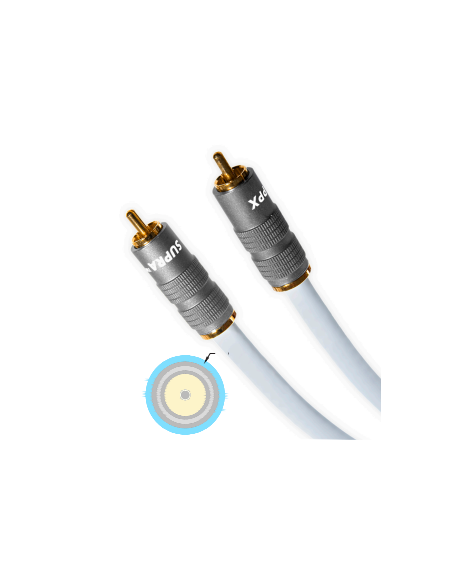

Trico 1RCA-1RCA Digital

Trico 1RCA-1RCA digital

Digital interconnet S/PDIF 75 Ohm

The Supra Trico true 75 Ohm digital interconnects are designed for numerous digital & video transmissions that require a closely matched characteristic impedance with exceptional bandwidth, e.g. between computer and DAC and video transmissions. Trico have the required high bandwidth to transfer the full digital spectrum with a well controlled signal integrity, display sufficient head room to max performance even for longer transmissions and extremely low capacitance, the most benign characteristic there is for transfering digital square waves.

Supra Trico-RCA is a single-end interconnect, suitable for e.g. SDI or CD drive to DAC or AV amplifier.

CONSTRUCTION

• Cable: SUPRA Trico
• Jacket: PVC GA78, round
• Diameter: 8.3mm
• Colour: Iceblue (other colour upon order)
• Marking: SUPRA Trico > Made in Sweden > Meter mark
• Screen connection: Semi-balanced, the outer screen is only connected at the source end
• Connectors: SUPRA PPX (White print)
• - Type: 1 RCA male > 1 RCA male
• - Material: Pins of 24K Gold plated OFC
• - Colour: Anthracite grey
• - Locking: Expansion clamping to the chassis female RCA
• Solder tin: Almit SR34 Super
• Signal direction: Follow the arrows > Source > Receiver
• Packing <4m: Blister 25 x 21.5 x 4.8cm
• Packing >4m: Blister 31.5 x 25.4 x 6cm
