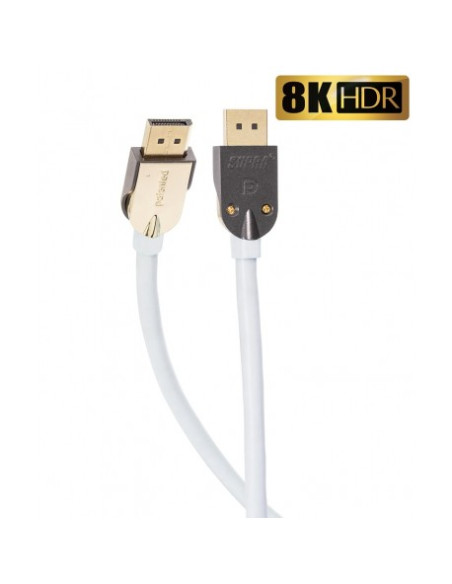

Supra DisplayPort DP-DP

SUPRA DISPLAYPORT

DisplayPort is one of the most common standards for computer graphics, but is now also frequent used for projectors and TVs. Our patented 24K gold-plated DP connector are an important factor in maintaining the image quality we are known for. The connector is inter-changeable, which enables cable installation in conduit pipes. The Dispalyport cable is terminated with Supra UHD8, which with its lightning-fast, shielded and precise transmission of the binary code is hard to beat.

The patented detachable connector housing allows a straight or a angled shell, as well as being able to install the cable with connector part through a conduit pipe for concealed installation when the connector housing is removed. The plug itself is carefully soldered by qualified personnel, as well as cast in a strong plastic to withstand handling without the contact housing being assembled. It is possible to run the cable in a 25mm conduit pipe or alternatively a 30mm conduit hose. The housing is made of metal and after assembly it

provides 100% shielding properties.

Standard: DisplayPort, UHD HDR v1.2/1.4a

Jacket: PVC GA78, round

Diameter: 6.5mm

Colour: Iceblue (other colours upon order)

Shell straight: Met-S fully shielded in Aluminum

Shell size LxBxH: 32x21x8 mm

Size without shell: 30x15x6 mm

Installaion braid: Accessory

Resolution 1.4a<3m: 8K 7680x4320@30Hz/4K 3840x2160@120Hz

Resolution 1.2 < 5m: 4K 3840x2160@75Hz/2K 2560x1440p@165Hz

Bandwidth 1-3m: HBR3 32.4 Gbit/s

Bandwidth 4-5m: HBR2 21.6 Gbit/s

Temp.range: -10 till 80 oC

Packing: Blister 25x21.5x4.8cm
