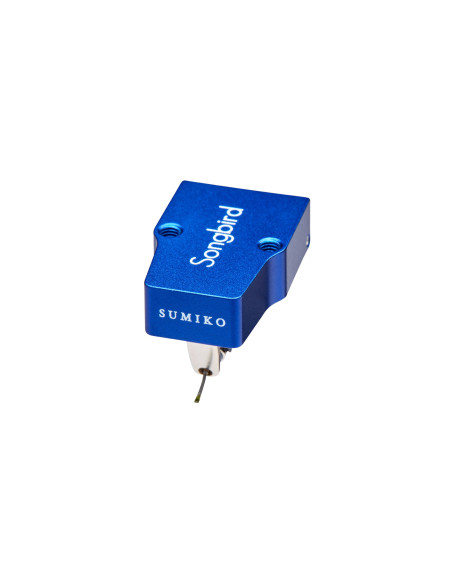

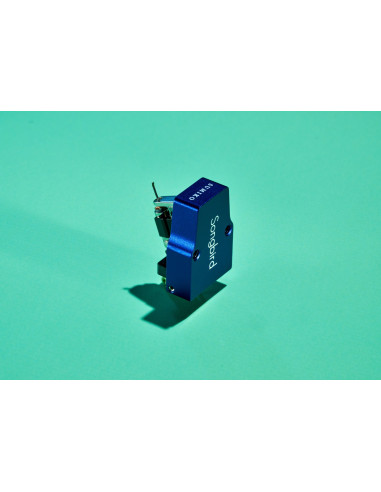

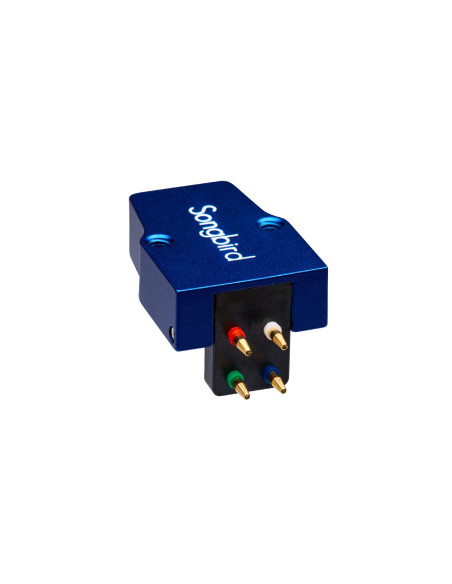

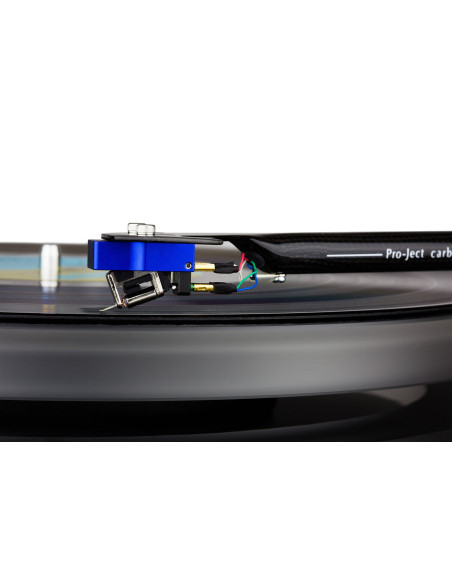

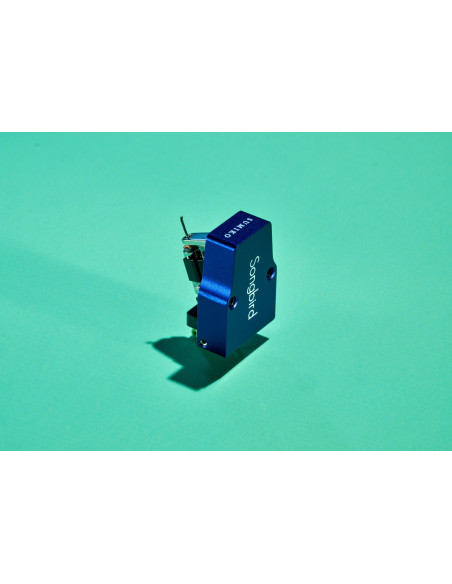

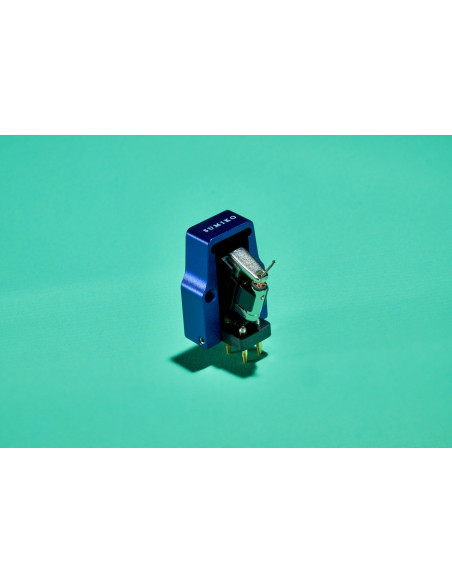

Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge
Songbird High Phono Cartridge

Songbird High Phono Cartridge

Next-Gen Moving Coil Phono Pickup

2373
Out-of-Stock
€999.00
Tax included

Product Details

Type
MC
Mass & Dimension
8.5g, 17 x 18 x 28.5mm (WxHxD)
Stylus
0.3 x 0.7mil Elliptical
Cantilever
⌀0.5mm Treated Aluminum Pipe
Coils
High-Purity Copper
Internal Impedance
135Ω
Load Impedance
47kΩ
Frequency Response
12Hz – 40kHz
Output
2.5mV @ 1kHz
Channel Separation
30dB @ 1kHz
Channel Balance
0.5dB @ 1kHz
Compliance
12×10-6cm/dyn @ 100Hz
Vertical Tracking Angle
20°
Tracking Force Range
1.8g – 2.2g
Recommended Tracking Force
2.0g
Replacement Stylus Unit
Re-Tip Exchange (See Dealer)
Capacitance
100pF – 200pF
