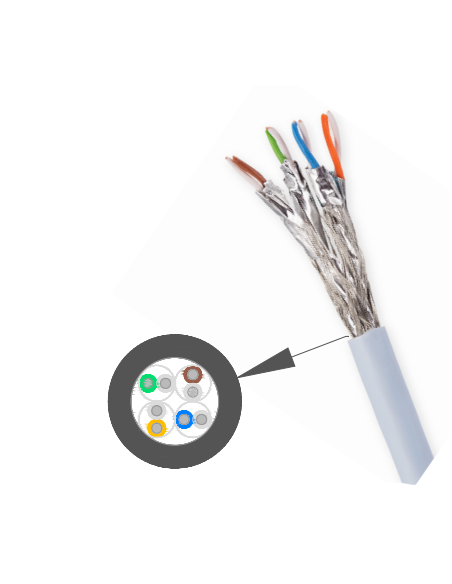

SUPRA CAT 8 STP FRHF

Cat 8 STP FRHF - Halogen free & flame retardant

Supra Cat 8 is once more one step ahead by providing a future proof cable, e.g. 40GBASE-T over one singel cable! It is used beneficially in TCP/IP and UDP applications where bit-correct, jitter-free data transmissions is critical, e.g. 4K and 8K video streaming, high quality music streaming (e.g. 32 bits @ < 700 kHz for some downloadable music and in-studio applications), gaming and data centers, and in-building installations such as hotels & conference facilities. Supra Cat 8 allows for 2,000 MHz transfer speed providing for quality enhancing massive headroom, excellent NEXT, low damping, excellent shielding, Low jitter and perfect timing. Supra is considered as a trustworthy and responsible partner for installations in public and official premises. We meet the latest regulation of flame retardancy and toxic emissions. CPS; Construction

Products Regulation; EN 50399:2011 and EN 60322-1-2:2004/A1:2015/A11:2016 CE marking; EN 50399 and EN60322. Fire behavior: DCA, Smoke protection: s1, Flaming droplets: d1, Reaction to fire classification: Dca-s1, d1

• CONSTRUCTION
• Conductors (x8): Round pressed 7-strands Cu-wire OFC 5N, Area: 0,13mm2
•  / AWG 26/7
• Isolation: Gas foamed PE, Brown/white, green/white, blue/white & orange/white
• Screen: Double, Each twisted pair ALU/PET foil & common Cu-braid, 100%
• Jacket: PE ECCOH 5943 FRHF, round
• Thickness jacket: 1.5 mm
• Diameter: 6 mm
• Colour: Ice blue (other colours upon order)
• Marking: SUPRA Cat 8 STP FRHF > Made in Sweden > Meter mark
• Packing: Bobin 150m & 600m (other lengths upon order)

ELECTRICAL SPECIFICATION

• Resistance 145 Ohm/km
• Capacitance 43 pF/m
• Bandwidth 2000 MHz
• Signal direction Bi-directional
• Skew@100MHz: 5ns/100m
• Characteristic Impedance 100 Ohm
• Velocity factor: 0,8 x C (speed of light)
