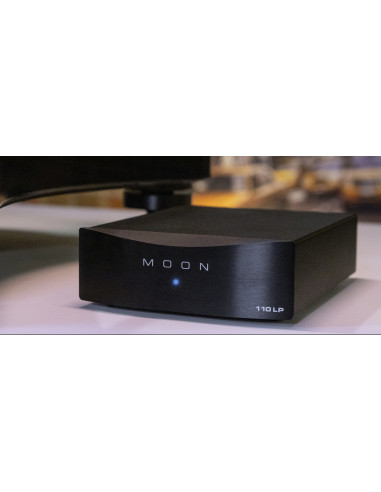

Moon 110LP V2

Design features

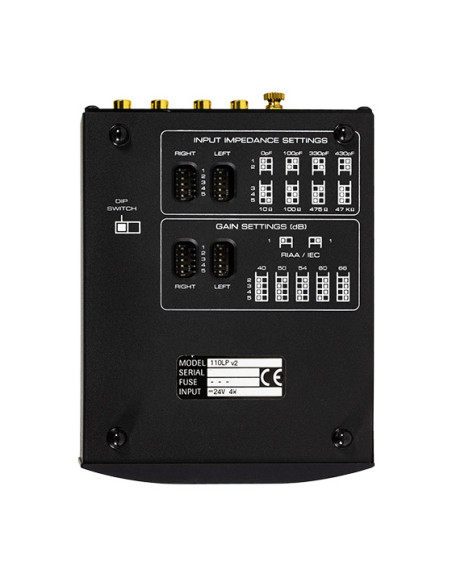

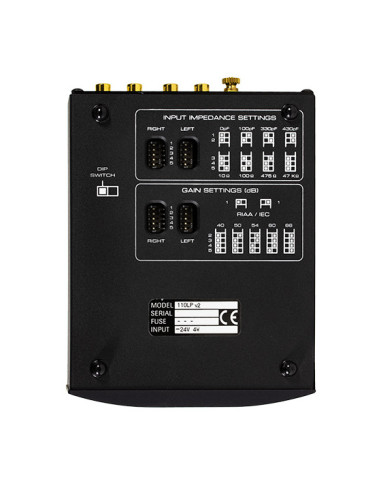

• End-user adjustable impedance loading (47kΩ, 475Ω, 100Ω, 10Ω)
• End-user adjustable capacitance loading (0pF, 100pF, 330pF, 430pF)
• End-user adjustable gain settings for moving magnet and moving coil cartridges (40dB, 50dB, 54dB, 60dB, 66dB)
• End user selectable curve (IEC/RIAA)
• Four layer PCB tracings using pure copper for low impedance characteristics
• Inductive DC Filtering for a significantly lower noise floor
• Compact, rigid all-aluminum chassis with gold-plated RCA connectors
• Designed to be powered up at all times for optimal performance

• Circuit Layout
  Mirror-image symmetrical circuit

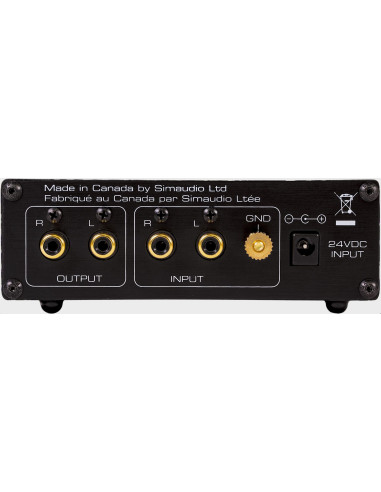

• Single-ended inputs
  1 pair (RCA)
• Input Impedance - Adjustable
  10Ω / 100Ω / 475Ω / 47kΩ
• Input Capacitance - Adjustable
  0 / 100pF / 330pF / 430pF
• Gain Level - Adjustable
  40dB / 50dB / 54dB / 60dB / 66dB
• Curve
  IEC / RIAA
• Signal-to-noise Ratio (full scale @40 dB gain)
  104 dB
• Signal-to-noise Ratio (full scale @60 dB gain)
  87 dB
• Frequency Response
  20Hz - 20kHz (± 0.5dB)
• Intermodulation Distortion
  0.002%
• THD (20Hz - 20kHz)
  0.002%
• Power Consumption @ idle
  2 W
• AC Power Requirements
  100-240V 50Hz / 60 Hz
• Shipping Weight
  3.3 lb / 1.5 kg
• Dimensions (W x H x D)
  5.0 x 1.65 x 6.5 in
• 12.7 x 4.2 x 16.5 cm
