USB 2.0

USB 2.0 High Speed - Multi test winner!

Many USB interface users are accustomed to that the USB interface limits the distance between the devices, but not any longer. Supra USB 2.0 allows for distances up to 15 meters between your devices! The trick is as always, the shielding, separate for each pair of leads, correctly twisted leads and the exact impedance alignment of 90ohm, which is absolutely vital for USB applications for jitter-free transmissions. Supra USB 2.0 will reward you with a dynamic, rich and detailed music experience. Undoubtedly! Available with A, B, Mini B, Micro B & A female plugs.

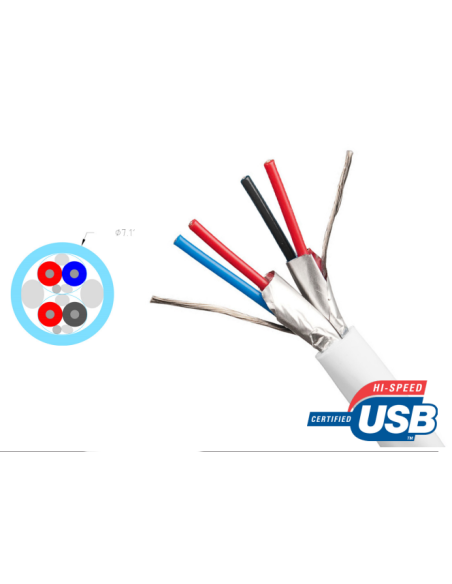

CONSTRUCTION

• Version: SUPRA USB 2.0 High Speed
• Cunductors (x4): Tin plated Cu-wire OFC 5N 19x0.127 mm
• Cross section Area: 2x2x0,24mm2 / AWG 23
• Insulation: Pair 1: PE red & blue / Pair 2: PE red & black. Twisted conductors
• Screen: Alu/PET foil
• Screen coverage: 100%
• Screen connection: 2 x tin plated drain-wires 19x0.127mm
• Pairs 2 twisted pairs, PE insulated conductors in 3 colours for easy identification
• Jacket: PVC GA78, round
• Jacket wall thickness 1.5 mm
• Diameter: 7.1 mm
• Colour: Iceblue (other colours upon order)
• Marking: SUPRA USB > Made in Sweden > Meter mark
• Weight: 56 kg/km
• Packing: Bobbin 300m (other lengths upon order)

ELECTRICAL SPECIFCATION

• Bit rate: 480 Mbit/s
• Resistance: 72 ohm/km
• Capacitance: 52 pF/m
• Characteristic impedance: 90 Ohm
• Velocity factor: 0,66x C (speed of light)
